Αρχική Σελίδα /Προϊόντα/Κεταλλωτήρα με πυριτό από βιομάζα/Quotation Industry Horizontal Free Coal/Wood/Biomass Fired Steam Boiler Automatic Boilers Factory Prices Direct Sales

Quotation Industry Horizontal Free Coal/Wood/Biomass Fired Steam Boiler Automatic Boilers Factory Prices Direct Sales

1 Set
MOQ
$16,520.00(>=1 Sets)
τιμή
Quotation Industry Horizontal Free Coal/Wood/Biomass Fired Steam Boiler Automatic Boilers Factory Prices Direct Sales
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Applicable Industries: Hotels, Food & Beverage Factory, Energy & Mining, Chemical Industry, Industry, Centralized Heating, Food Factory, Chemical production, Pharmaceutical production, Clothing production, Beverage production, Hospital disinfection, Building materials pr
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Biomass Boiler
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: fire and water tube
Pressure: Low Pressure
Steam Production: Max. 20t/h
Style: Horizontal
Fuel: Wood Burning and Coal
Output: Steam
Dimension(L*W*H): Can be customized
Weight: 10Ton
Warranty: 1 Year, One Year
Key Selling Points: Automatic
Keywords: Biomass Boiler
Design fuel: Biomass Pellet
Application: Industrial Production
Material: Special Boiler Steel Plate
Item: Industry Biomass Boiler
Applicable Fuel: Biomass Forming Granules
Working Pressure: 1-1.6 MPa
Function: Single Heating
Boiler: Wood Steam Boiler
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: Can be Customized Oil Gas Fired WNS Horizontal Steam Fired Boiler 1.Standard export packing 2.According to customer requirements
Supply Ability: 50 Set/Sets per Month Hot sale hot oil gas fired WNS horizontal steam boiler
Περιγραφή προϊόντων

Free Quote Industry Coal/Wood/Biomass Fired Automatic Steam Boiler Boiler Factory Price Direct Sales

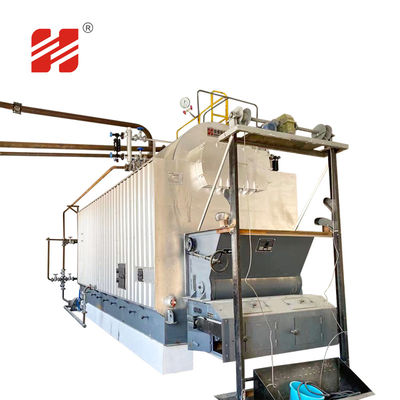

DZL series biomass horizontal three-pass water-fire tube chain grate boiler is a kind of quick installation boiler. The boiler body is arranged in a single drum in the longitudinal direction, and threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, and the drum and the water walls on both sides form a furnace radiant heating surface. The combustion equipment adopts light chain grate; the entire quick installation form has been delivered. Electric control realizes stepless speed regulation, limit parameter alarm and interlock protection.

Advantages:

. Wide fuel adaptability: suitable for biomass molding pellets, rice husks, wood chips, corn cobs, sawdust, etc.
. Fully burning and high-efficiency grate: Reasonable furnace design and full combustion of fuel can effectively eliminate black smoke.
. High safety, long-lasting durability: The water supply adopts microcomputer control and automatic water inlet, the life of the boiler in normal use is more than 20 years.
. High degree of automation: easy maintenance, fewer operation and maintenance personnel are required, which saves your investment costs while ensuring stable operation.
Model
Rated evaporation(MW)
Rated working pressure(MPa)
Saturated steam temperature(℃)
Boiler efficiency(%)
DZL1-1.0/1.25/1.6
1
1.0/1.25/1.6
184/194/204
84.45
DZL2-1.0/1.25/1.6
2
1.0/1.25/1.6
184/194/204
84.72
DZL4-1.0/1.25/1.6
4
1.0/1.25/1.6
184/194/204
85.56
DZL6-1.0/1.25/1.6
6
1.0/1.25/1.6
184/194/204
85.94
DZL10-1.0/1.25/1.6
10
1.0/1.25/1.6
184/194/204
86.23

FAQ
1.What can you get from us before quotation?
A: After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
2.Below are the details need your confirmation before quotation?
A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler?
2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil?
2.3. What is the requirement for oil/steam temperature and pressure?
3.What are the available fuel for the oil gas fired boiler?
A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
4.How long can we get the reply with detailed information for our project ?
A: For single boiler,usually you can get the detailed offer within 1 day after detail confirmed;For whole set project;the time takes longer.
