Steam Boiler Coal Fired Steam Boiler Power Plant Spare Parts Boiler Drum

1.0 Sets
MOQ
Steam Boiler Coal Fired Steam Boiler Power Plant Spare Parts Boiler Drum
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Warranty: 1.5 years
Applicable Industries: Energy & Mining
Showroom Location: Egypt, Canada, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine,
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Keywords: boiler drum
Application: steam boiler
Color: Customer's Requirement
Material: Carbon Steel
Fuels: Waste Oil
Available: Biomass Fired Boiler Heating
Certificate: ISO9001
Gas type: Liquified Pertroleum Gas
Power: 50Hz
Product name: Coal fired steam boiler power station spare parts boiler drum
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Canada, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Sout
Βασικές πληροφορίες
Πιστοποίηση: ISO9001
Πληρωμής & Αποστολής Όροι
Packaging Details: Coal fired steam boiler power station spare parts boiler drum Packing: Metal Frame
Supply Ability: 1000 Ton/Tons per Year Coal fired steam boiler power station spare parts boiler drum
Περιγραφή προϊόντων
Product Description

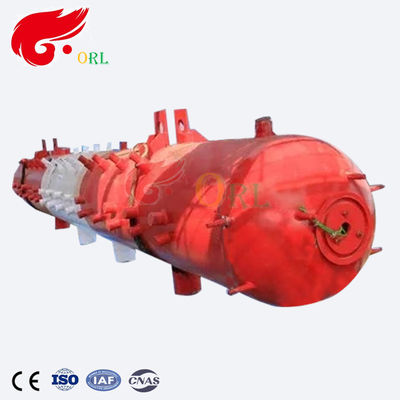

gray coal fired steam boiler power station spare parts boiler drum

Description

In the water tube boiler the upper drum (Boiler steam drum) provides for separation of steam from water. It also provides liquid holdup capacity (typically 10 to 60 seconds) to allow for a dynamic response to load changes without losing liquid in the downcomer and riser tubes. The size of the steam drum is determined by the volume required for a clean separation between steam and water to produce a dry saturated steam, it also provides an adequate amount of steam storage. The steam drum is also called the upper drum.



Product parameter



Product Name

Boiler Steam Drum ( Steam Water Separator )

Applied Area

Natural circulation boiler

Drum Shell Plate Material

- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70

- Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353

Drum Head Material

Same as shell

Nozzle Tube Material

As per design

Standard

China GB, ASME, EN

Manufacturer Grade

China A Grade, ABS Certificated, TUV Certificated

Working Temperature

Saturation Temperature at rated pressure

Working Pressure

1.6 MPa ~ 22.5 MPa

Shell Plate Thickness

(Drum Wall Thickness)

≤150 mm

Drum Diameter

≤3,200 mm

Drum Length

≤25,000 mm

Welding

- Shell : SMAW, SAW

- Nozzle tube : GTAW (TIG), SMAW

Welding NDT

- Shell longitudinal seam : 100% RT, 100% UT

- Shell circumferential seam : 100% RT, 15% UT

- Nozzle tube angle seam : 100% UT, 100% MT
