Horizontal factory direct sale! Manual Type Wood Chips Biomass Pellet Coal Fired Industrial Steam Boiler (0.5 to 4ton per hour)

Horizontal factory direct sale! Manual Type Wood Chips Biomass Pellet Coal Fired Industrial Steam Boiler (0.5 to 4ton per hour)
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Περιγραφή προϊόντων
Product Description
TAIGUO DZH series boiler is manual operation boiler which adopting manual fuel feeding, manual slag removing. The fuel can be firewood, wood logs, biomass pellets, peanuts shell, grain shell, etc. Equipped with special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.), it can realize automatic fuel feeding, automatic ash removing. It is the most popular products in Southeast Asia, Central Asia, Africa.
Product

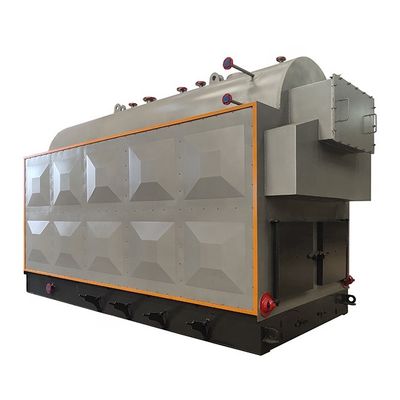

Manual Operation Wood Biomass Coal Fired Steam Boiler
Steam Capacity
0.5 t/h, 1 t/h, 2 t/h, 3 t/h, 4 t/h
Working Pressure
≤1.6Mpa
Steam Tempe.
≤204℃
Fuel Feeding
Manual fuel feeding
Slag Removing
Manual slag removing
Color
Silver Grey, Red

Classical Structure

Advanced Structure: DZH boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. Comparing with DZL series boiler, DZH series boiler has better adaptability on fuels, it can fire coal, rice husk, nut shell, sawdust, waste wood pieces, also can fire wood logs, straws. But, DZH boiler can only support manual fuel feeding, and manual ash remove.

High Quality Control

High Quality Control: In manufacturing processes, we has adopting steel strength test, automatic steel cutting/ plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography Ultrasound check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test,etc, to make sure all finished products is qualified.

Low Fuel & Labor Cost

DZH boiler can firecoal, rice husk, nut shell, sawdust, waste wood pieces, also can fire wood logs, straws. This will markedly reduce user’s fuel consumption cost, increase company’s benefits. Only need 1 worker to operate the fuel feeding and slag removing.
Model Catalogs
Model
DZH0.5-1.0
DZH1-1.25
DZH2-1.25
DZH3-1.25
DZH4-1.25
Steam Capacity
500 KG/H
1000 KG/H
2000 KG/H
3000 KG/H
4000 KG/H
Working Pressure
1.0 Mpa
1.25 Mpa
1.25 Mpa
1.25 Mpa
1.25 Mpa
Steam Temperature
184℃
194℃
194℃
194℃
194℃
Available Fuel
Biomass, Coal, Wood Logs, Crop Shell, etc.
Biomass, Coal, Wood Logs, Crop Shell, etc.
Biomass, Coal, Wood Logs, Crop Shell, etc.
Biomass, Coal, Wood Logs, Crop Shell, etc.
Biomass, Coal, Wood Logs, Crop Shell, etc.
Operation Method
Manual Fuel Feeding,
Manual Slag Removing
Details Images
Our Service

Pre-Sales Service

* Inquiry and consulting supports
* Visting our factory

Ocean Shipment

* Loading in factory or seaport
* Manage the CHINA-CUSTOM clearance, shipping

After-Sales Service

* Engineers available to service machinery overseas. * Training how to install the machine, training how to use the boiler.

Returning Visit

* Our After-Sales team will return the visit to remind the maintenance, and help the user to solve the problem in daily operation.
Sucessful Cases

1TON/H Manual Type Steam Boiler

Fuel: Firewood
User’s site: Bangladesh
Steam capacity: 1000kg/hr
Working pressure: 1.25Mpa
Application: Packing industry

2TON/H Manual Type Steam Boiler

Fuel: Coal
User’s site: Uzbekistan
Steam capacity: 2000kg/hr
Working pressure: 1.25Mpa
Application: Paper industry

4TON/H Traveling Grate Type Steam Boiler

Fuel: Sawdust
User’s site: Malaysia
Steam capacity: 4000kg/hr Working pressure: 1.25Mpa Application: Garment plant

4TONS/H Traveling Grate Type Steam Boiler

Fuel: Rice Husk
User’s site: Thailand
Steam capacity: 4000kg/hr
Working pressure: 1.6Mpa
Application: Food industry

6TONS/H Traveling Grate Type Steam Boiler

Fuel: Peanuts Shell
User’s site: Philippines
Steam capacity: 6000kg/hr
Working pressure: 1.25Mpa
Application: Textile dyeing

15TONS/H Traveling Grate Type Steam Boiler

Fuel: Coal
User’s site: Pakistan
Steam capacity: 15000kg/hr
Working pressure: 1.25Mpa
Application: Rubber industry
About Us
Well-organized Workshop
TAIGUO has 2 workshops, adopting 5S management standards, the workshop environment is clean and tidy, equipment and products are placed in an orderly manner. All the above, just to create a comfortable working experience for production workers and visiting customers.
Sufficient New Stocks
In order to manage the delivery ASAP, TAIGUO ready the sufficient new stocks, include gas (oil) boiler, gas (oil) fired steam generator, coal (biomass) boiler, electric heating boiler, gas (oil) fired thermal oil boiler, coal-fired thermal oil boiler, biomass fired thermal oil boiler, timber treatment cylinder, hot air furnace, etc.
Experienced Team
TAIGUO has more than 190 employees, includes 2 general managers, 4 technical directors, 9 QC engineers,25 salesmen, 10 administrative staff, 4 warehouse staff, 6 financial staff, 4 pre-sales engineers, and 6 after-sales engineers, 120 frontline production workers. Factory Direct Sale! Manual Type Wood Chips Biomass Pellet Coal Fired Industrial Steam Boiler (0.5 to 4ton per hour)
