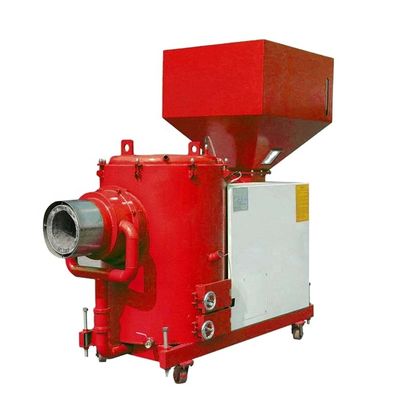

Boiler System BNTET Boiler Kiln Drier Hotel Clothing Using Biomass Burners Wood Sawdust Chip Husk Fired

1.0 Sets
MOQ
Boiler System BNTET Boiler Kiln Drier Hotel Clothing Using Biomass Burners Wood Sawdust Chip Husk Fired
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Warranty: 1.5 years
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Type: Biomass Burner
Product name: Boiler Dryer Biomass Burners Wood Sawdust Chip Husk Fired
Fuels: Biomass, Wood
Application: Boiler System
Material: 304 SS and Aluminum Alloy
Keywords: Boiler Dryer Biomass Burners Wood Chip Fired
Model: BN-60-FL
Usage: Oven, Boiler, Furnace, Incinerator, etc.
Available: Generally
Color: Customers' Requirement
Power: 200,000-3,000,000Kcal
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Βασικές πληροφορίες
Model Number: BN-60-FL
Πληρωμής & Αποστολής Όροι
Packaging Details: Plywood fumigation-free wooden Case.
Supply Ability: 100000 Set/Sets per Month
Περιγραφή προϊόντων

BNTET Boiler Dryer Furnace Hotel Clothing Using Biomass Burners Wood Sawdust Chip Husk Fired

Product Description
Biomass burner uses biomass wood pellets as fuel, and the biomass pellets are sent into the combustion chamber for direct combustion through an automatic feeding device, and the heat energy after combustion can be directly supplied to the boiler, powder coating, die casting, clothing, hotel, heat treatment and other heating equipment. The product adopts semi-gasified composite combustion technology, which has the characteristics of reasonable structure, automatic feeding, high thermal efficiency, full combustion, low sulfur content, no pollution, low emissions, simple and convenient installation, and small space occupation. The operating cost of biomass burners is low, which can save 30%-60% of operating costs compared to fuel oil/gas burners.
Advantages of biomass burner:
1. High-efficiency and energy-saving: Renewable biomass pellet fuel is used as energy source, the using cost is low, and the operating cost is 30%-60% lower than that of fuel oil/gas.
2. High thermal efficiency: semi-gasified suspension combustion with tangent a swirl flow air distribution design, low temperature staged combustion, burnout rate of more than 98%, and furnace temperature of more than 1200 ℃.
3. Stable and reliable: Micro-positive pressure operation, silo isolation transportation method, no tempering and de-firing phenomenon, has applied for national invention patent.
4. Low-carbon environmental protection: low smoke, sulfur and nitrogen emissions, and nearly zero carbon dioxide emissions, accord with smoke emission requirements.
5. Simple operation: easy installation, automatic feeding, simple operation, less workload, large silo capacity (larger capacity silo can be customized). The feeding can be run for 3-12 hours at a time, only need to fill the bin in time, only one person on duty is OK.
Product Parameter

General model configuration parameters:



Note: The fuel consumption is based on the test with calorific value of 4200kcal/h and density of 1.1-1.4 biological wood pellet fuel; the fuel consumption depends on the temperature used.
Above provided optional parameters only for reference, and need to be configured according to different actual conditions.

Application


Biomass burners are widely used in spray drying lines, casting heat treatment, annealing furnaces, aluminum rod heating furnaces, clothing, hotels, melting boilers, industrial furnaces, greenhouses, steam boilers, hot water boilers, thermal oil boilers, hot air Furnace, drying equipment, paint, wood, gravel, leather, clothing, ceramics, paper products, food drying equipment, etc., for heating equipment use and energy-saving transformation.

Detailed Images

Company Information

Established in August 2006, Zhengzhou Bona Heat Energy Equipment Co., Ltd is an innovative technology enterprise, which is focusing on the production, R & D and technical consulting services of burner, burner accessories, hot air furnace, and boiler related products.
Zhengzhou Bona Heat Energy Equipment Co., Ltd upholds the development and innovation consciousness, produces products with high-performance combustion technology.
Our Main products is various boiler burners, and industial burners. Such as biomass burners, natural gas burners, liquefied gas burners, industrial gas burners, light oil burners (diesel burners), heavy oil burners, waste oil burners, pulverized coal burners, rotary kiln burners, hot air furnace(hot blast stoves), and related products.

Certificates of Patent:

Contact Us

Name: Aura

/ Sales Manager

Mobile Phone: +86 152 2518 2501

WhatsApp/Wechat ID: +86 152 2518 2501

Factory Add.: Xinhua Road Office, Xinmi City, Zhengzhou City, Henan Province,China.

Any Help if You Need, Welcome to Contact us Now!
